Details

Material: Stainless Steel 316.

Applications:
LSQ-S2-SS are used in construction equipment, hydraulic applications. These Double Shut-Off couplings can be found anywhere that fluid transfer lines need to be connected and disconnected for operation or maintenance of equipment, and a loss of fluid is undesirable.
LSQ-S2-SS are used in construction quipment, Forestry equipment, agricultural machinery, oil tools, Oil equipment, steel mill machinery, and other demanding hydraulic applications

Specifications:

LSQ-S2-SS Series couplings feature:
1.Poppet valves available to prevent uncoupled leakage.
2.Poppet valves open automatically when coupled, within rated working pressure, to keep the flow expeditely.
3.Dependable ball-locking mechanism holds the mating halves together.
4.Socket and plug are precision machined from solid bar stock.
5.LSQ-S2-SS series conforms to the standard of ISO 7241-B.


Interchangeable Standard :
PARKER 60 Series,
FASTER HNV Series,
AEROQUIP FD45 Series,
HANSEN HK Series,
PERFECTING H Series,
SNAP TITE 72 Series,
DNP PBVX Series,
SAFEWAY S10 Series,
STUCCHI IRBX Series.

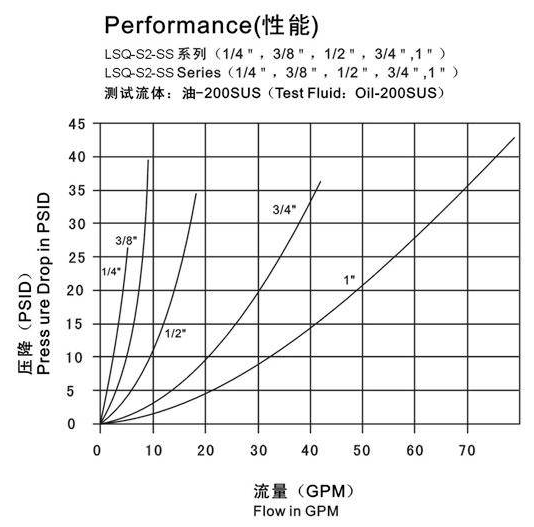

Performance: Test Fluid:Oil-200SUS.1GPM=3.78L/Min,1PSID=0.0069MPa.

LSQ-S2-SS Series(1/4",3/8",1/2",3/4",1")
