LSQ | LSQ- ISO 7241-1A HYDRAULIC COUPLING (STEEL)
Specifications
SKU
5
MODEL
LSQ-S1-02SF (BSP 1/4), LSQ-S1-03SF (BSP 3/8), LSQ-S1-04SF (BSP 1/2), LSQ-S1-06SF (BSP 3/4), LSQ-S1-08SF (BSP1), LSQ-S1-10SF (BSP 1-1/4), LSQ-S1-12SF (BSP 1-1/2), LSQ-S1-16SF (BSP 2), LSQ-S1-02PF (BSP 1/4), LSQ-S1-03PF (BSP 3/8), LSQ-S1-04PF (BSP 1/2), LSQ-S1-06PF (BSP 3/4), LSQ-S1-08PF (BSP1), LSQ-S1-10PF (BSP 1-1/4), LSQ-S1-12PF (BSP 1-1/2), LSQ-S1-16PF (BSP 2)
Details
Material: Steel, trivalent chromed plated.
Applications:
The LSQ-S1 Series bring to the industry a proven design for use on construction equipment, forestry equipment, agricultural machinery, oil tools, oil equipment steel mill machinery,and other demanding hydraulic applications.
Specifications:
| Body Size (in) | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 1-1/4 | 1-1/2 | 2 |
| Rated Pressure (PSI) | 5000 | 4000 | 4000 | 3000 | 3000 | 3000 | 2000 | 2000 |
| Rated Flow (GPM) | 3 | 6 | 12 | 28 | 50 | 88 | 120 | 240 |
| Temperature Range | -20℃ to +120℃ | |||||||
| Standard seal material | NBR | |||||||
LSQ-S1 Series couplings feature:
1.Poppet valves available to prevent uncoupled leakage.
2.Poppet valves open automatically when coupled, within rated working pressure, to keep the flow expeditely.
3.Critical parts are hardened for durability.
4.Dependable ball-locking mechanism holds the mating halves together.
5.Socket and plug are precision machined from solid bar stock.
6.LSQ-S1 series conforms to the standard of ISO7241-A.
Interchangeable Standard :
PARKER 6600 Series,
FASTER ANV Series,
AEROQUIP 5600 Series,
HANSEN HA 15000 Series,
PERFECTING K Series,
SNAP TITE 61 Series,
DNP PAV Series,
SAFEWAY S56 Series,
TOMCO A5600 Series,
STUCCHI BIR Series.

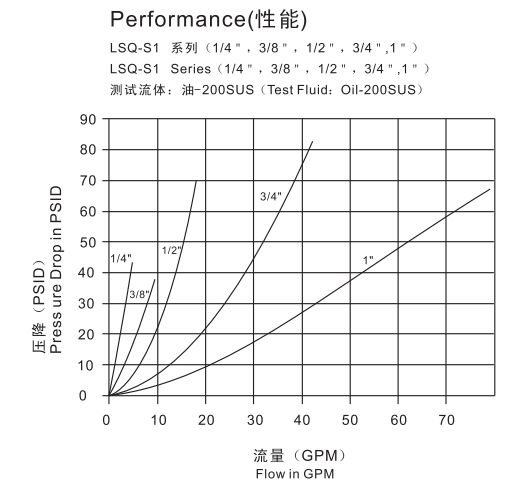

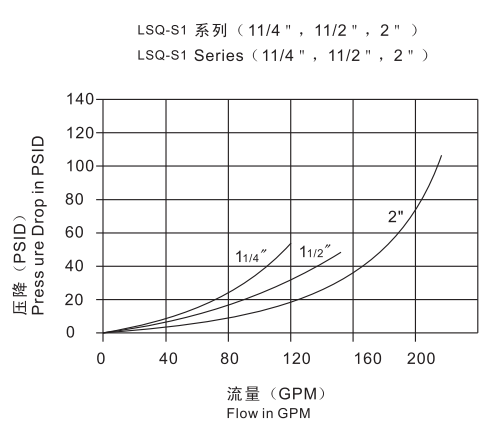

Performance:Test Fluid:Oil-200SUS.1GPM=3.78L/Min,1PSID=0.0069MPa.
.png)
