Details

---

Descripton:
LSQ-S2-SS close type hydraulic quick coupling(stainless steel 316)
Applications:LSQ-S2-SS are used in construction equipment, hydraulic applications. These Double Shut-Off couplings can be found anywhere that fluid transfer lines need to be connected and disconnected for operation or maintenance of equipment, and a loss of fluid is undesirable.LSQ-S2-SS are used in construction quipment, Forestry equipment, agricultural machinery, oil tools, Oil equipment, steel mill machinery, and other demanding hydraulic applications.

LSQ-S2-SS Series couplings feature:
1.Poppet valves available to prevent uncoupled leakage.
2.Poppet valves open automatically when coupled, within rated working pressure, to keep the flow expeditely.
3.Dependable ball-locking mechanism holds the mating halves together.
4.Socket and plug are precision machined from solid bar stock.
5.LSQ-S2-SS series conforms to the standard of ISO 7241-B.
6.Compatible with PARKER 60 Series, FASTER HNV Series, AEROQUIP FD45 Series and HANSEN HK Series.

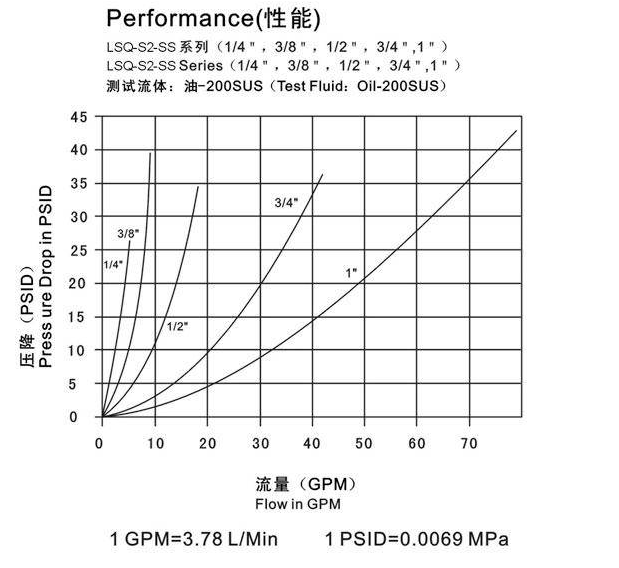

Performance: Test Fluid:Oil-200SUS.1GPM=3.78L/Min,1PSID=0.0069MPa.
