Descripton:
KZF Close Type Hydraulic Quick Coupling (stainless steel 304).
KZF couplings, are used across the spectrum of hydraulic applications. These Double Shut-Off couplings can be found anywhere that fluid transfer lines need to be connected and disconnected for operation or maintenance of equipment, and a loss of fluid is undesirable. Primarily used with hydraulic fluid. KZF couplings are also used with chemicals, water, steam, and some gases.



KZF Series couplings feature:

1. Poppet valves available to prevent uncoupled leakage.
2. Poppet valves open automatically when coupled, within rated working pressure, to keep the flow expeditely.
3. Dependable ball-locking mechanism holds the mating halves together.

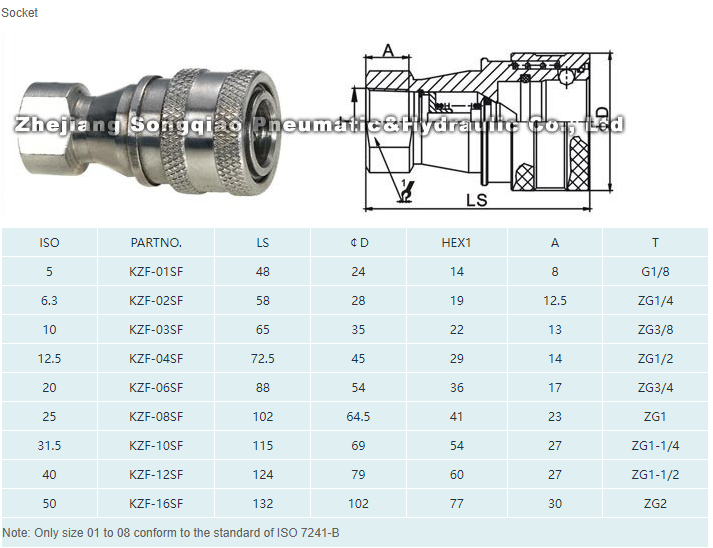

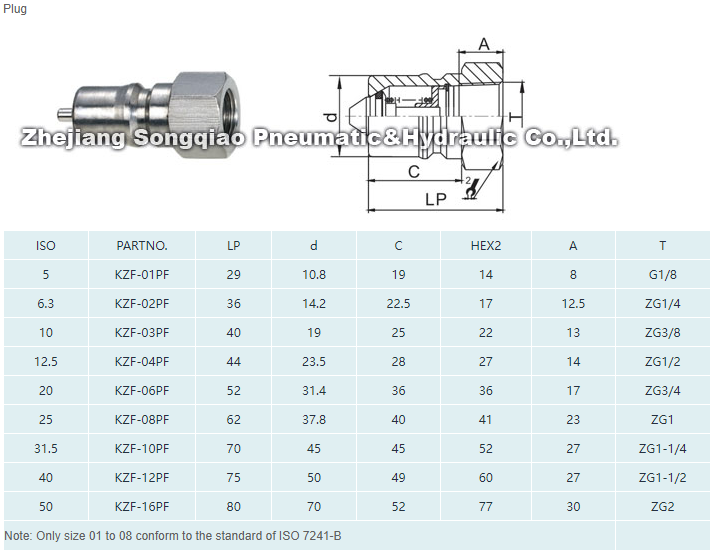

4. Socket and plug are precision machined from solid bar stock.
5. KZF series conforms to the standard of ISO 7241-B
6. Compatible with PARKER 60 Series, FASTER HNV Series, AEROQUIP FD45 Series and HANSEN HK Series

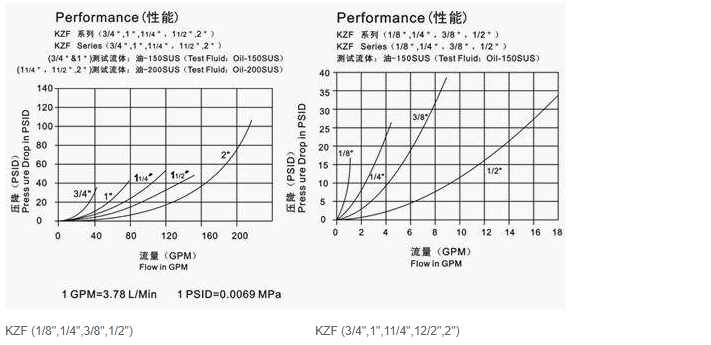

Performance: Test liquid oil -150SUS        Performance: (3/4"&1) Test liquid oil -150SUS,

                                                                   (11/4",11/2",2") Test liquid oil -200SUS

                                                                   GPM = 3.78 L/Min, 1 psid = 0.0069 MPa.
